4000 Mah GPS Tracker for Hunting Dog Real Time Tracking Voice Monitor anti Lost GSM GPRS Pet Locator

4G Hunting Dog GPS Training Collar IK122T with Electronic shock

1. Real Time Tracking

2. Internet upgrade from 2G to 2G+4G

3. Strobe Light, you could set up strobe light to find out your dog in the forest at night.

4. Remote Training(Sound&Electric shock) by sending command on icargps application.

5. 1000 positioning storage capacity: suppose the device be set to upload data every 10 seconds, 1000 positioning storage capacity can work about 3-4 hours when gps is weak or lost. The gps collar will upload data automatically when gps signal come back normal.

6. 180 days tracking route playback.

7. Geo-Fence to set a safe area for you dog, and you will receive an alarm once dog enter or leave the safe area.

8. You could own an admin account to manage all your gps collars at the same time which is no limit on quantity.

9. No distance limit for tracking and trainning.

10. Electronic shock,you could send e-shock command to train the dog

11. Set admin number for the IK122T tracker, then make a call to the sim card inside your IK122T gps collar, you could hear from the dog.

12. Buzzer to help find dog: send search dog command if you could not find out your dog in the forest, the 4G IK122T will play a tune to help you indentify the dog location.

13. Owner can monitor different dogs' tracking route at the same time by setting the tracking route color (max 21 colors)

14. The upgraded 4G IK122T comes with IP68, so don't worry about water in when your dog play near the river or water.

15. The IK122T comes with strong housing which could be anti-bite and anti-drop, just relax and enjoy your hunting trips with your four leg partner.

16. The E-shock pin is waterproof and removable, you could remove it if you don't need the e-shock function.

IK122T Hound GPS Training Collar Parameters:

Device Dimension : 70*40*40mm

Device Weight :143g

Telecom Chipset : Quectel EG915U-EU

Frequency Band : GSM 850/900/1800/1900MHz

LTE: B1/B3/B5/B7/B8/B20/B28

Network : LTE&GSM

Location Way : LBS/AGPS/GPS/Glonass

Location accuracy : <10 meters

Tracking sensitivity : -162 dBm

Humidity : 5%--95% non-condensing

Internal Battery : 3.7V 4000mAh Li-Polymer battery

Standby Time : 30 days(1h interval);15 days(5mins);60h(10s)

Charging Way : Magnetic Charger

Sim Card : Nano SIM card

Comparing with IK122 PRO Dog GPS Collar:

1. IK122T comes with smaller size than IK122 PRO，to make it not only for large dog，but suitable for medium and small puppy.

2. Bigger atenna for IK122T （ increased 56%）, so as to improve the positioning speed and accuracy.

3. Stobe light to find out your dog in the forest at night.

4. Improve the call dog function, and make it much clear to what happen near your dog.

5. No distance limit electronic shock for dog trainning.

6. Set different tracking route colors for different dogs to track dogs at the same time.

ICAR PLATFORM & APP

Demo: icardemo password: 123456 Track your devices on our site : www.icargps.net Or you can download the app to track it.

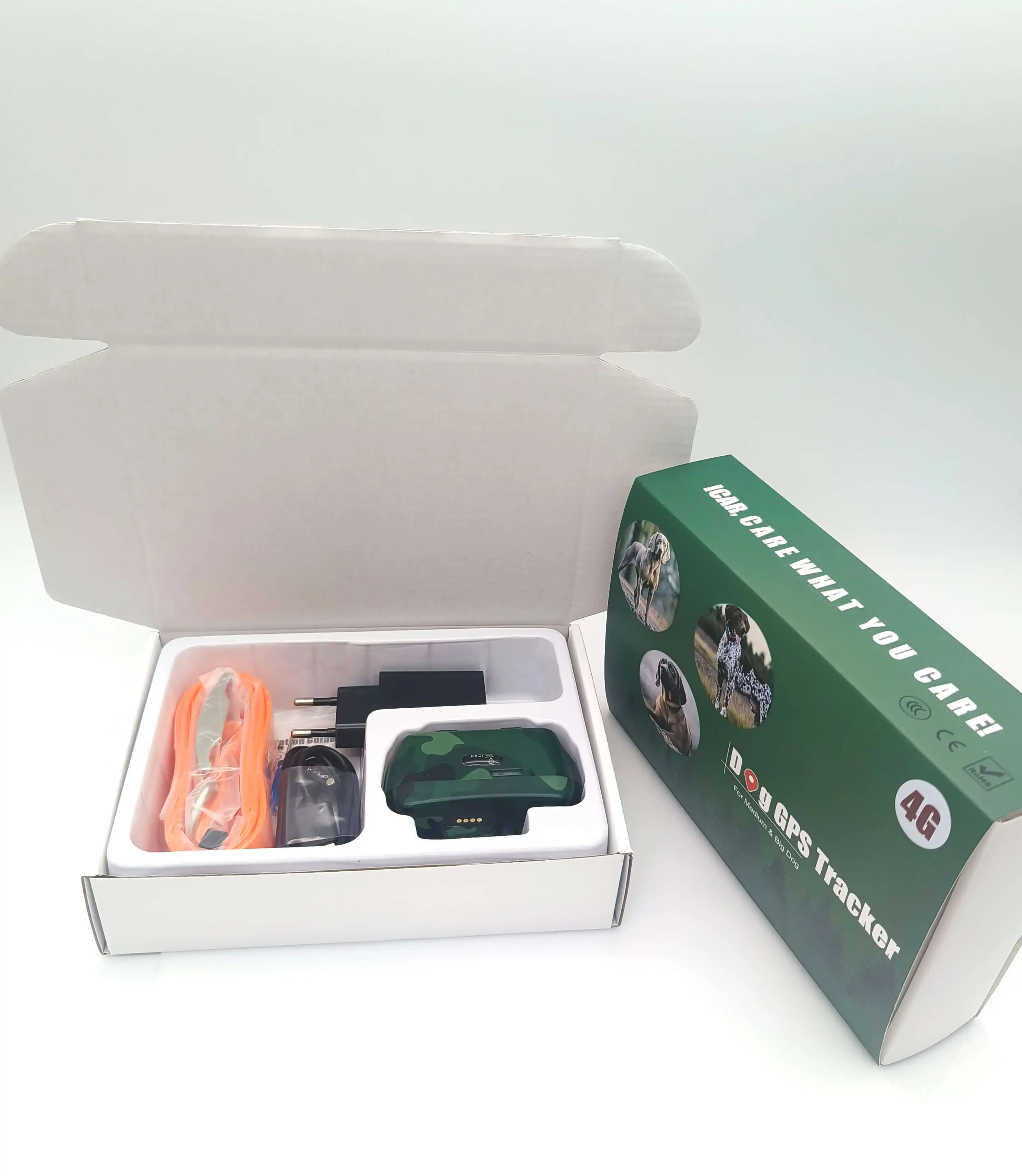

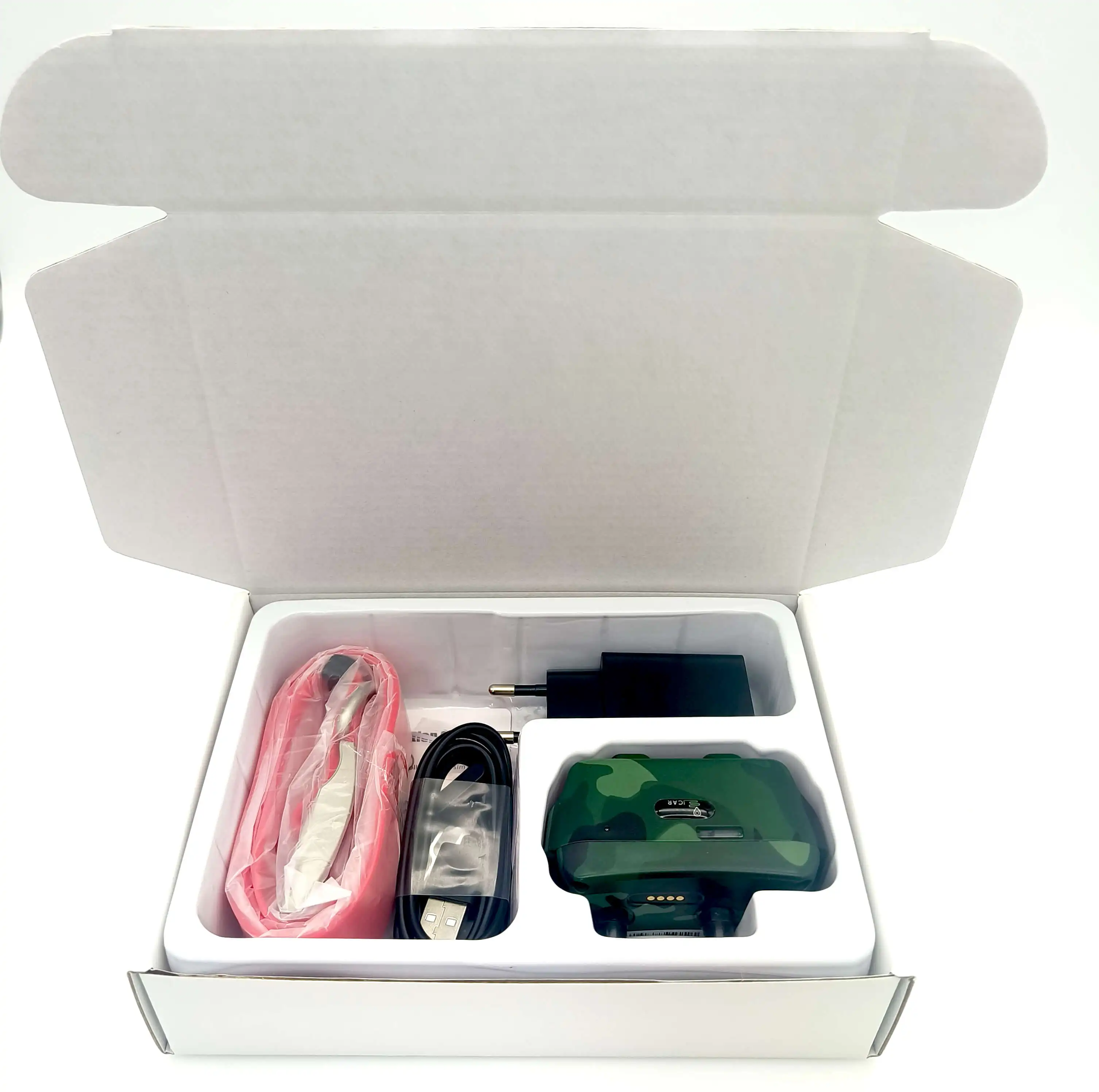

Package Contents:

1pc*ICAR GPS Tracker IK122T(Eshock Version)

1pc* Magnetic USB cable

1pc* User manual

1pc* Dog Belt

1pc* Screw pen

2pc* Replacement screws

1pc* gift box

FAQ

1.Why there is so many “hieroglyphs”on the APP?

The “hieroglyphs” is Chinese. Engineers have written many different language into the APP, but not including all language.

APP language adapts to your phone language. App shows in Chinese if it can’t read your phone language, because the language is missing in the APP database.

------------------------------------------------------------------------------------------------------

How to solve this issue?

First, you could switch your phone to English. Second, get in touch with our customers service to upgrade the language database.

2.Why can’t log in app or platform?

First, Please confirm that you use the right APP or Platform:

APP Name : ICARGPS

Platform : www.icargps.net

Second : Make sure that you have chosen the right option to login:

Click “ID number login” if you want to log in with ID number;

Click “Account Login” if you have an account.

3.What’s the APN?

The APN is Access Point Network of the sim card you are going to insert into the gps device.

Please check the APN with your Sim card operator.

Or check it by this link:

http://www.unlockit.co.nz/mobilesettings/

4.How to set APN?

1).send SMS commands to set APN 2).Tell us your APN, then we could help you set APN before shipping.

APN Command format: apn123456+blank+ APN name (the format is different for different tracking device, set apn according to device user manual)

5.How Can I set IP and port?

Normally,we have preset the IP and Port before shipping the gps devices for customers.

Or you can send following commands to set:

Commands format: adminip+Password+Blank+IP+Port

E.g: adminip123456 113.98.254.178 7700

(password: 123456 IP: 113.98.254.178 Port: 7700)

6.How can I get an account to log in on platform or APP?

Please get in touch with our customers service team (info@icargps.com) to help you create an account if you buy more than 2pcs devices.

Email us with the user name and password you want to use on our platform, and all ID numbers of the tracking devices you want to put under your account.

7.Do I have to change IMEI?

All our IMEI number is legal, so you don’t have to change the IMEI.

You may have to change IMEI if you buy tracking devices from small manufacturer who offers illegal IMEI.

8.What should i do if tracking device shows “unactivated” on platform?

1).Check if the device is power on or not, if not, please recharge for it.

2).Check if you have insert the sim card in a right way, and your sim card offer enough data for the device(at least 30mb per month).

Notice: please don’t use the sim card with Pin Code for gps device( it means the sim card that you have to insert a password on the sim card to use it), or you could ask your sim card operator to help cancel the password for you.

3).Check if the apn, IP,port has been set in a right way. Send command to check, command content: CXZT

4)Take the gps tracker and go out of the house, for better gps signal. And make sure the device is not covered by any metal.

9.Why does the device shows “offline” on platform?

1).Check if there is Cut off alarm or Remove Alarm and Low Power Alarm on APP, because device will show offline if it has been disconnected.

Reinstall or Recharge for the device to make it online is ok.

2)Check if you should recharge for the sim card for enough data.

3).Check if the apn, IP,port has been set in a right way.

10.Why does the gps device shows incorrect positioning? Or why my device shows it’s in China? Why my device show it is in the sea?

That’s the last location of the gps tracker before shipping.

Or the device can’t find gps signal, it shows incorrect location.

Please put the device in open area for better gps signal. (near the window or take it out of the house and go to street)

11.Why the tracking device shows incorrect time?

Please update the correct timezone for your device on platform.(APP doesn’t support timezone change)

12.How to choose sim card?

Please confirm 2G network still work in your country or not and make it clear what kind of tracking device you are going to buy?( 2G/3G/4G).

Make sure the sim card you buy supports 2G/3G/4G frequence bands and it come with that the card has enough currency and credit to support at least 30MB data petr month.

And the sim card can work without password, that means it didn’t come with pin code.

13.How can I tell if the gps tracker locate in a right way or not?

1).check if the location address is right or not.

2).check if the location way is correct or not: shows GPS+LBS or GPS+Glonass.

3).Check if the time is right or not.

14.Why device doesn’t response to sms commands?

1).check if insert the sim card right and well

2).check if sim card with credit

3).check if sim card support your device frequency bands or not:

2G network and frequency band: GSM+GPRS, 850/900/1800/1900Mhz

3G frequency bands: WCDMA , 850/900/1900/2100 Mhz

4G frequency bands: LTE , frequency bands different for different country.

4).Is there a pin code on the sim card? If yes,please contact sim card operator to help cancel it, or try another sim card from different operator.
